Louvre Windows - Wideline

Take over with the ultimate safety and climate control. Louvres let you manage ventilation through manual or powered operation.

Available in the following range:

Explore Paragon

Paragon

Explore Ascend

Ascend

Paragon double opening hinged doors with louvre sidelight windows in Pearl White, Millbrook Homes

Explore Natura

Natura

Wideline’s wonderful choice continues with a whole new angle, you at the controls, you decide how much light and fresh air you let in depending on the time of year.

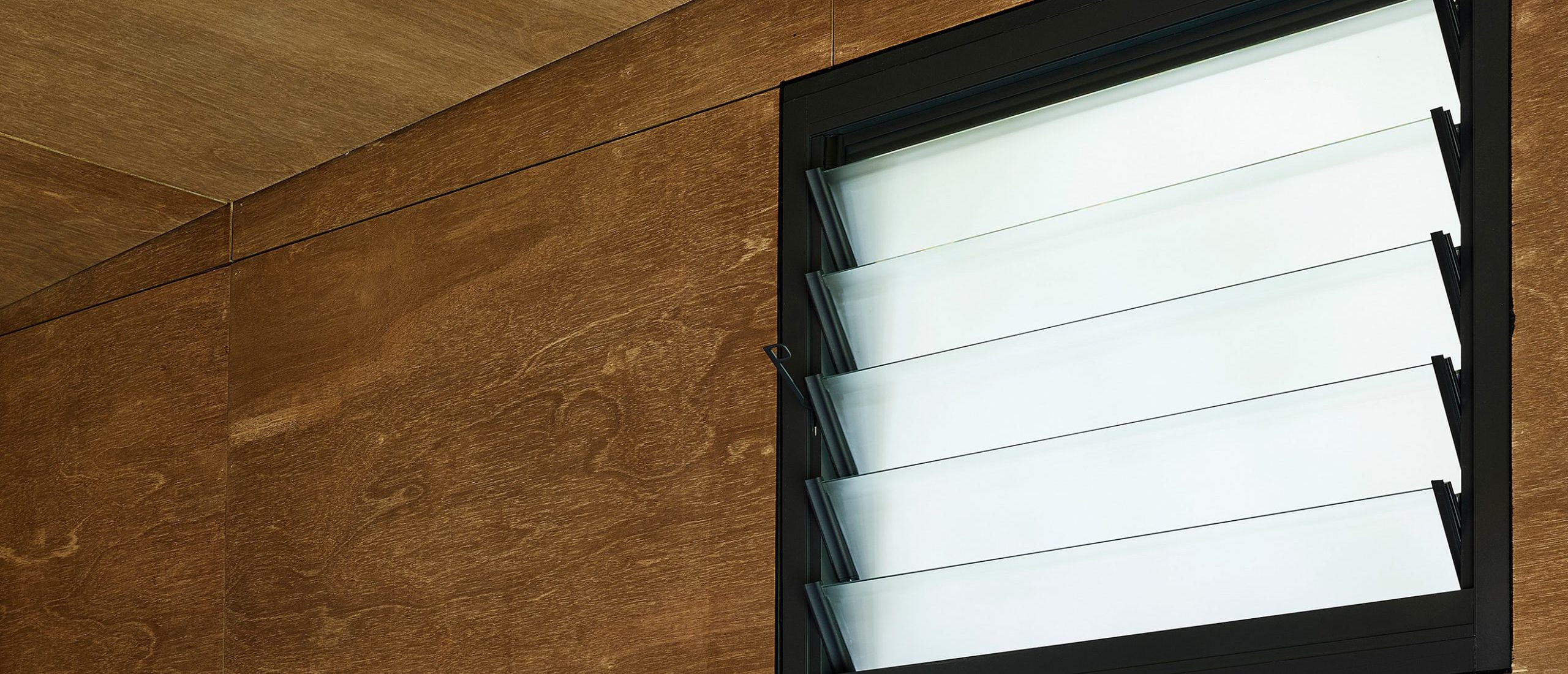

The Ascend louvre window combines cutting edge design, quality materials and precision manufacturing. Specify them anywhere and everywhere. Ascend Louvre is the perfect window solution for openings in high applications, multi-storey, patio and balcony enclosures.

Stylish and practical, Paragon louvre windows give you control over light, ventilation and panorama. Wideline’s unique injection moulded clips provide a weather tight, corrosion-free seal along with quiet operation.

Natura timber louvre windows are available in Western Red Cedar or Meranti timber varieties, depending on your preference.

Technical

	Paragon	Ascend	Horizon
Frame Depth	100 or 150	100	N/A
Maximum Gallery Height	3059mm	3027mm	N/A
Blade Height	152mm or 102mm	152mm or 102mm	N/A
Maximum Blade Width	900mm	900mm	N/A
Maximum Blade Thickness	6mm	6mm	N/A

Performance

	Paragon	Ascend	Horizon
Minimum U Value	4.8	4.7	N/A
SHGC Range	0.26-0.57	0.27-0.58	N/A
Maximum Water Rating	150Pa	150Pa	N/A
Maximum Bushfire Rating	BAL-40 (Ventus & SecureLine)	BAL-40 (Ventus & SecureLine)	N/A
