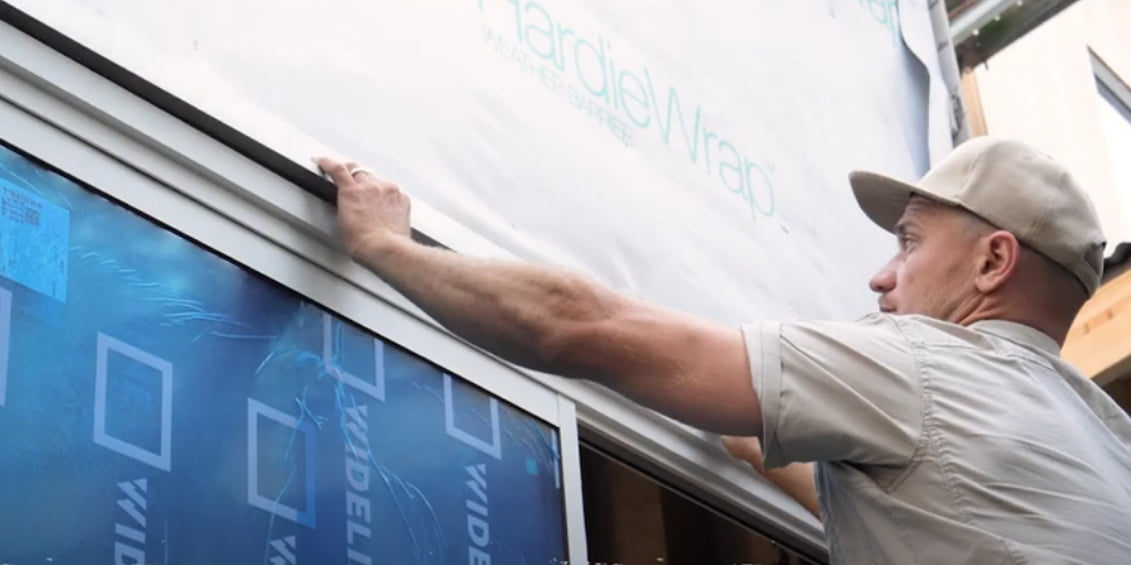

We have a range of standard reveal sizes to suit a variety of applications.
Wideline window & door reveals are available in meranti and finger jointed primed pine in standard sizes according to the following table.
Please note that the dimensions which appear on your quotation are for the actual aluminium frame size. Reveals are additional to the frame size (19mm thick each side). Read our guide to getting measurements right.
| Reveal | Application | Breakdown |
|---|---|---|
| 80mm | 70mm steel or timber frame | 70mm stud-gyprock interior weatherboard exterior |
| 100mm | 90mm steel or timber frame | 90mm stud-gyprock interior weatherboard exterior |
| 117mm | 230mm brick veneer | 70mm stud 40mm cavity brick veneer |
| 138mm | 250mm brick veneer | 90mm stud 40mm cavity brick veneer |
| 165mm | 270mm double brick | 50mm cavity brick |
| Storm moulds Double brick lugs | 270mm double brick | 50mm cavity brick |
| Single brick lugs | 110-220mm brickwork | 1110 - single brickwork 220 - pier brickwork- blockwork |
